Pepperl+Fuchs VOC industrial event camera

Click2Contact

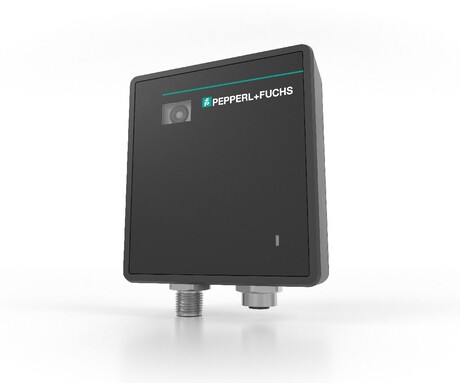

The Pepperl+Fuchs VOC Industrial Event Camera is designed to provide event-driven video intelligence to support rapid diagnostics and minimise costly downtime.

Engineered for continuous operation, the camera provides 24/7 monitoring via an intelligent ring buffer that stores up to 900 seconds of footage. When a predefined trigger event occurs, it automatically saves the 900 seconds before and after the incident — delivering a complete 1800-second recording for analysis of the situation. The system captures high-quality Full HD video and detailed 12 Mp images, all with timestamps for easy reference. Additional context such as error codes or system messages can be integrated into recordings via UDP text overlays, enabling faster identification of root causes and improved process transparency.

Designed for flexibility, the VOC Industrial Event Camera supports a wide range of trigger options, including digital input, REST API, and motion or brightness detection in advanced versions. The Performance model also includes human detection for enhanced safety monitoring in sensitive areas. Built for demanding industrial environments, the camera features IP65-rated protection and operates reliably in temperatures from -30 to +50°C. With HTTPS encryption, privacy masking and optional face blurring, it is designed to provide robust cybersecurity and data protection.
