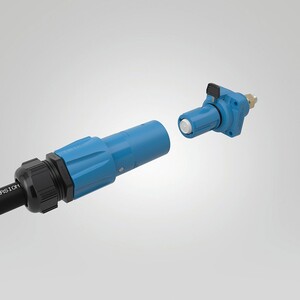

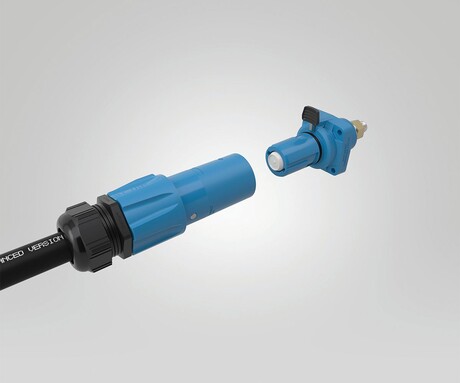

LAPP EPIC POWERLOCK power connector

Click2Contact

The EPIC POWERLOCK from LAPP has a newly developed mechanism with a fully integrated slider, which allows release without the need for special tools. This makes handling easier and prevents improper disconnection of the plug connection.

The contacts inside have also been redesigned: instead of different variants — depending on the conductor cross-section — the POWERLOCK uses a single cone-shaped axial screw contact that automatically fans out the strands when inserted. This allows diameters from 35 to 240 mm² to be reliably connected. The combination of mechanical and colour coding minimises the risk of incorrect connections and enables clear assignment of the conductors.

With its high current-carrying capacity (up to 660A), IP-protected design, and reliable locking mechanism, EPIC POWERLOCK is suitable for industrial distribution systems, test benches and mobile power supply solutions.
