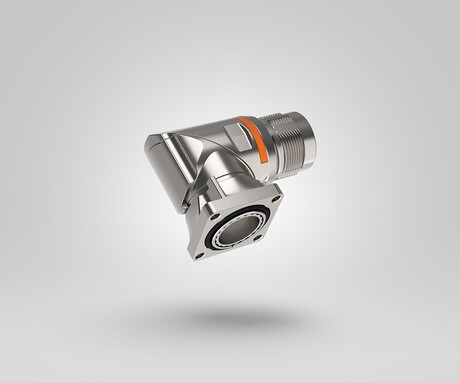

LAPP EPIC M23 Power rotatable socket for servo motors

Click2Contact

The EPIC M23 Power from LAPP is a rotatable angle socket for direct connection to servo motors, including signal transmission, especially for harsh environments where electromagnetic compatibility (EMC) is required.

The rotatable and angled M23 motor connector has a Quickflex quick-locking system that makes it easier to connect to the mating part. Locking takes place after one eighth of a turn and can be plugged in with market standard connectors. The EPIC M23P A3 Quickflex features the LAPP Clean Design and achieves protection class IP 68 when plugged in, making it particularly easy to clean. The rotatable outlet on the motor allows an adjustable, defined outlet angle and therefore offers maximum flexibility when connecting.

The design of the M23 motor connector allows voltages of up to 1000 V or can be used at altitudes of up to 5000 m. Its metal housing made of die-cast zinc gives it particular stability. The reinforced wall thickness makes it mechanically more robust and insensitive to shock and vibrations. Its shorter housing is also suitable for robot applications where every millimetre counts, while the installation space for assembly remains the same. The connector can also be used with the coloured marking rings of the EPIC M23P series.
