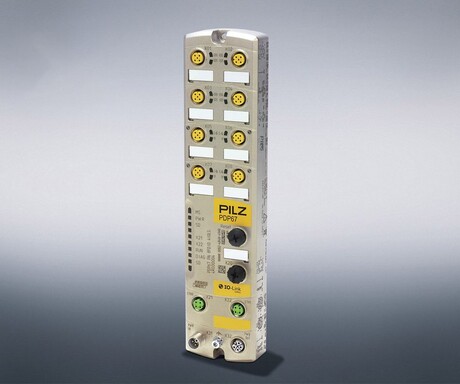

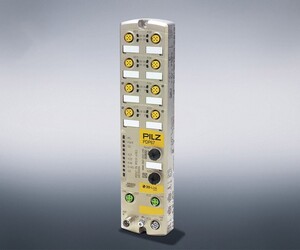

Pilz IO-Link Safety Master PDP 67

Click2Contact

The Pilz IO-Link Safety Master PDP67 is designed to enable seamless communication from the control level right down to the integration of safety-related sensors and actuators.

The PDP67 is designed as an all-round device that goes beyond the capabilities of a conventional IO-Link Master. It provides safe communication in addition to standard IO-Link functions, acting as a decentralised interface to the higher-level safety controller and enabling point-to-point connections up to field level. Its ports are universally configurable, allowing the processing of safe input and output signals alongside standard signals. This flexibility makes it possible to connect a wide range of devices, including IO-Link and IO-Link Safety components, as well as safety-related digital field devices.

The PDP67 is designed to be installed almost anywhere due to its compact and robust die-cast zinc housing, which meets protection classes IP67 and IP69K. It is built to withstand harsh environments, operating in temperatures from -30 to +70°C and at altitudes up to 5000 m. The module supports Profinet and Profisafe communication, features four IO-Link Safety ports, and offers two configurable safe digital inputs or outputs per port. With standardised M12 plug-in connections, wiring is simplified through plug-and-play, while configuration remains straightforward. An integrated web server assists with rapid fault diagnostics and the device is certified to safety standards, including PLe and SIL3.
