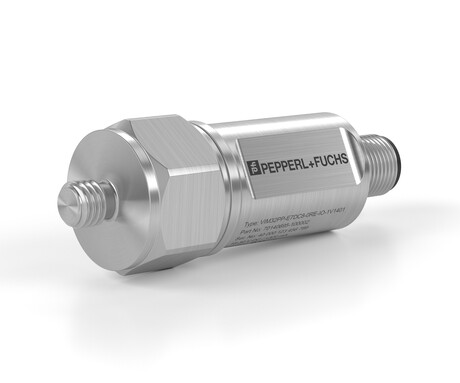

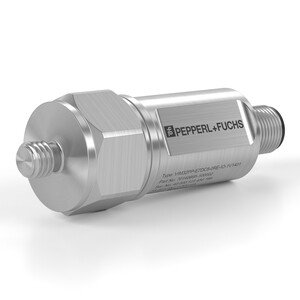

Pepperl+Fuchs VIM3 12 kHz vibration sensor

Click2Contact

Pepperl+Fuchs has developed the VIM3 12 kHz vibration sensor, engineered to deliver precision in condition monitoring applications. With a sampling rate of 64 kHz, the sensor is capable of capturing up to 12,000 vibrations per second, resulting in 64,000 measurement points every second. The high resolution provides a basis for accurate FFT analysis.

Instead of relying on cyclical IO-Link transmission, the VIM3 12 kHz uses IO-Link BLOB (Binary Large Object) transfer to manage the large volume of data generated. The sensor records raw acceleration data and stores it in its internal memory before transmitting it in structured packets via IO-Link. This method prevents excessive loading of system RAM, enabling smooth data handling and consistent system performance, even with very large datasets.

The combination of high-speed sampling and efficient data transmission makes the VIM3 12 kHz a suitable tool for condition monitoring and predictive maintenance strategies.
