Sintrones IBOX-600 Series industrial edge computer

Sunday, 01 June, 2025 | Supplied by: Backplane Systems Technology Pty Ltd

Sintrones IBOX-600 Series industrial edge computer

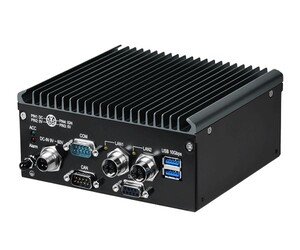

The IBOX-600 Series from Sintrones is a rugged, fanless embedded system designed for edge AI computing. Powered by NVIDIA Jetson Orin NX or Nano modules, the IBOX-600 offers up to 100 TOPS of AI inference performance with 1024 CUDA cores and 32 Tensor cores. Its ARM Cortex-A78AE CPU and onboard JetPack SDK are designed to enable rapid deployment of intelligent applications such as industrial machine vision.

Housed in a compact, durable aluminium chassis, the IBOX-600 features versatile I/O including two LAN ports (2.5 GbE and GbE), HDMI 2.1, USB 3.2, RS-232/422/485, CAN FD, DIO and three M.2/mPCIe slots for SSD, Wi-Fi, WWAN and GPS expansion. It supports wide-range 9–60 VDC input with over-voltage and current protection and includes a UPS back-up battery for power failure resilience. Optional RJ-45 or M12 X-coded connectors ensure deployment flexibility in industrial settings.

Certified to CE, FCC, EN50121-3-2 and MIL-STD-810G standards, and capable of operating from -25 to 70°C, the IBOX-600 aims to combine durability with high-level AI capability. It’s a suitable platform for harsh-environment edge deployments where compact size, reliability and performance matter most.

For more information: https://www.backplane.com.au/product/ibox-600/.

Online: www.backplane.com.au
Phone: 02 9457 6400
