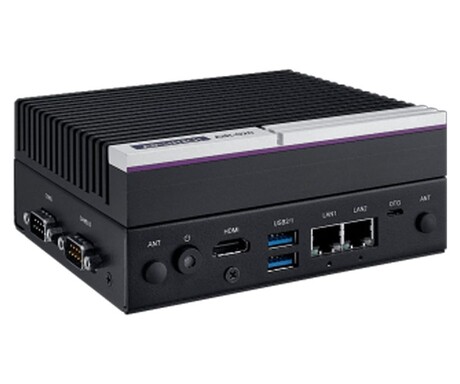

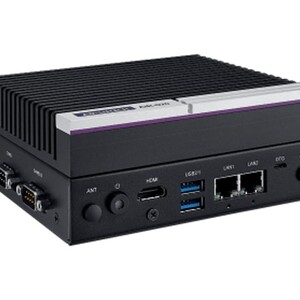

Advantech AIR-020R fanless edge AI inference system

Click2Contact

Advantech has introduced the AIR-020R, an ultra-compact, fanless edge AI inference system powered by the NVIDIA Jetson Orin Nano Super Mode, delivering up to 67 TOPS of AI computing performance. Purpose-built for industrial vision AI — including defect inspection, robotics and traffic monitoring — the AIR-020R offers seamless integration with Advantech’s 2D USB camera for streamlined deployment.

Equipped with an NVIDIA Ampere GPU (1024 CUDA cores, 32 Tensor Cores) and a six-core Arm Cortex-A78AE CPU, the AIR-020R is designed to run deep learning models for object detection, OCR, defect analysis, and visual anomaly inspection. Supporting NVIDIA JetPack 6.2 and Advantech Edge AI Suite, it allows developers to deploy pre-trained AI models from frameworks like PyTorch or ONNX, optimised via TensorRT for low-latency, real-time inference for robotics, AOI and smart manufacturing.

The AIR-020R features a rugged IP40-rated enclosure, fanless thermal design, and a –10 to 50°C operating range. It supports 12–24 VDC input and resists up to 3 GRMS vibration.

For flexible integration, the AIR-020R includes two Gigabit Ethernet ports, three USB 3.2 ports, two RS-232/422/485 ports, a CANbus port, 8-bit DIO and an HDMI port (4K@30Hz). It comes with 128 GB M.2 NVMe storage preloaded with JetPack 6.2 and offers miniPCIe with Nano SIM for wireless expansion, making it a ready-to-deploy AI vision solution.
