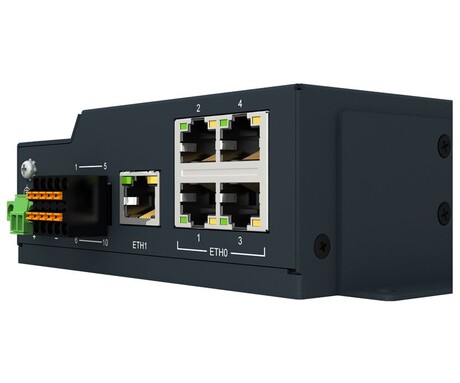

Advantech ICR-1745 industrial 5G gateway

Click2Contact

The Advantech ICR-1745 is an industrial connectivity gateway designed to connect IP devices and serial buses directly to 5G NR networks. Built for low-latency communication and reliable wireless performance, the ICR-1745 supports industrial M2M and IoT applications requiring real-time data transmission, including environmental monitoring and surveillance.

Leveraging 5G NR technology, the ICR-1745 is designed for fast and responsive data exchange for industrial applications where low latency and high availability are critical.

The ICR-1745 combines essential industrial interfaces in a compact form factor, including five Gigabit Ethernet ports, RS232 and RS485 serial connectivity, and digital I/O (one DI, one DO). Secure communication is supported through VPN tunnels using multiple protocols. Built-in diagnostics provide continuous monitoring of wired and wireless connections, automatic recovery after connection loss and a hardware watchdog for reliable autonomous operation.

Part of the ICR-1700 series, the gateway uses a system-on-module architecture with ICR-OS integrated directly on the cellular module. This approach supports open Linux-based user applications developed in scripts or C/C++. Selected RouterApps can also be deployed to extend firmware functionality using Advantech’s application library.

For large-scale deployments, the ICR-1745 is supported by WebAccess/DMP for device provisioning, monitoring, firmware management and centralised VPN administration.

For more information, click here.
