Interworld Electronics ARCHMI-S-812C industrial panel PC

Click2Contact

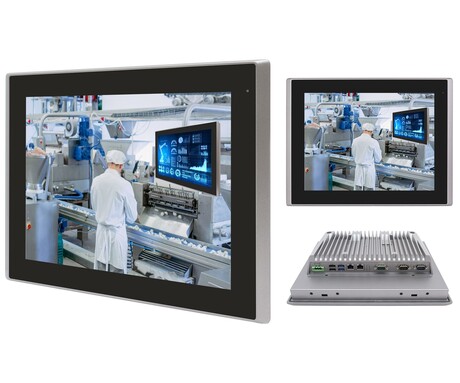

The Interworld Electronics ARCHMI-S-812C is a 12.1″ industrial touch screen panel PC designed for a wide range of industrial applications. It is powered by the Intel N97 Quad-Core processor, and features up to 32 GB DDR5 SO-DIMM memory.

The ARCHMI-S-812C includes an IP66-rated aluminium front bezel for protection against dust and water, along with a rugged die-cast chassis and fanless cooling for dependable operation.

It features a 12.1″ TFT-LCD screen with 800x600 or optional 1024x768 resolution. Touch options include resistive — suited for gloved operation or use in dusty and wet conditions — or projected capacitive multi-touch for scratch resistance and gesture support. Optional features include auto-dimming for variable light conditions and a 1000-nit high-brightness LCD for clear viewing in outdoor or bright settings.

Connectivity options consist of two Type-A USB 3.2 ports, two Type-A USB 2.0 ports, two RS-232/422/485 serial ports, an RS-232 port, Two 2.5 GbE LAN ports and an HDMI port for an external display. The PC features an M.2 slot for storage, two M.2 expansion slots for Wi-Fi/Bluetooth, and 4G/5G with Nano-SIM support. TPM 2.0 and a watchdog timer add system stability and data security.

The unit operates in 0–50°C or -20–60°C (optional) temperature ranges, and accepts a 9–36 VDC power input. Panel mount and VESA options also allow flexible installation. With its wide range of computing and rugged features, the ARCHMI-S-812C is suitable for a range of applications in control, automation and HMI.

For more information, click here.
